ER Diagrams

ER diagrams and SQLs

Consolidated table to data source to fact table mapping

Consolidated Table	Data Source in Tableau	Fact Table

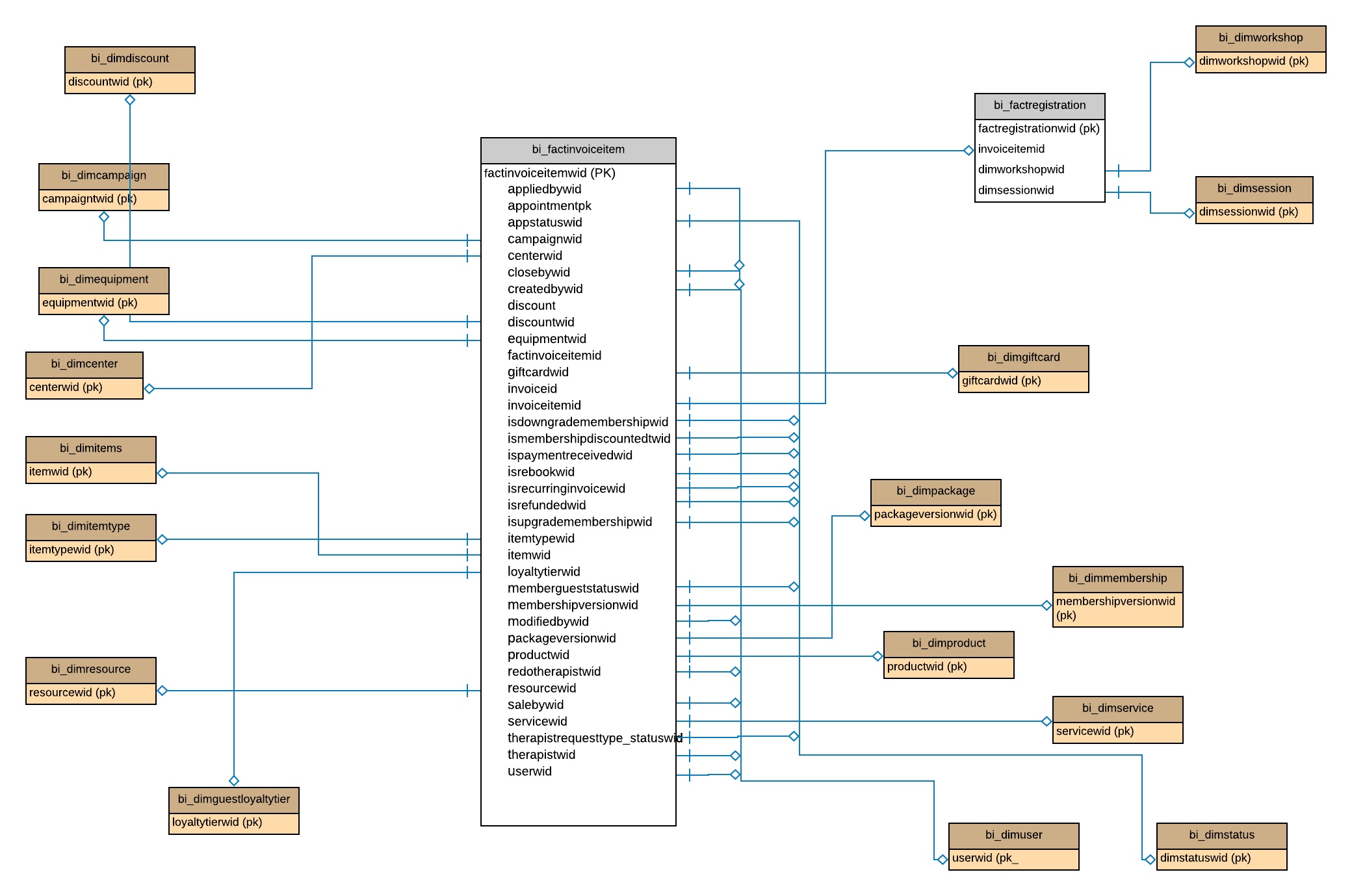

sales_fact_consolidated	Sales	bi_factinvoiceitem

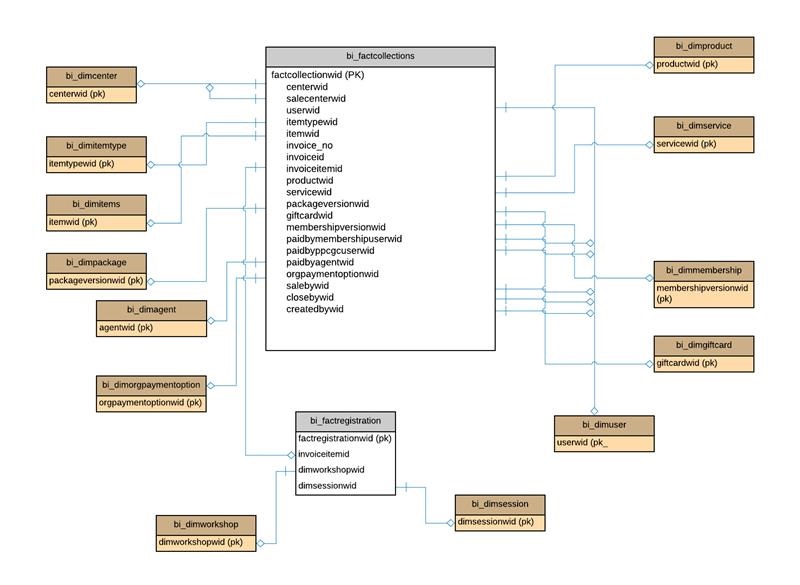

collections_fact_consolidated	Collections	bi_factcollections

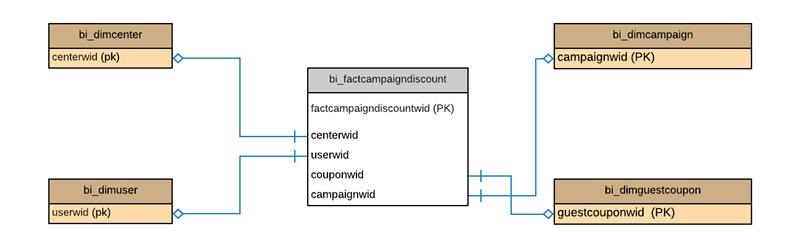

campaigndiscount_fact_consolidated	Campaign_discount	bi_factcampaigndiscount

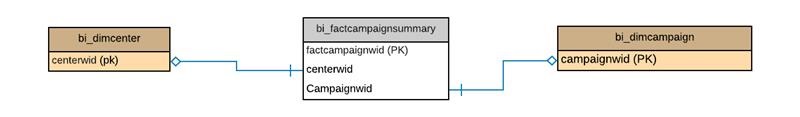

campaign_fact_consolidated	Campaigns	bi_factcampaignsummary

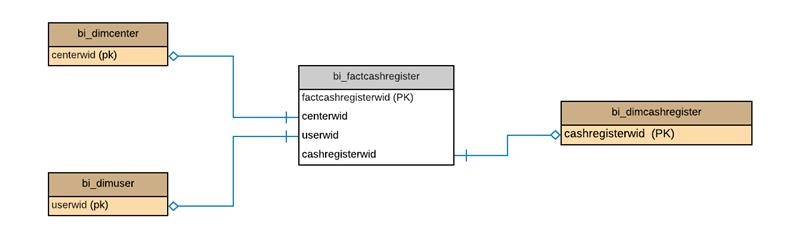

cashregiser_fact_consolidated	Cash Register	bi_factcashregister

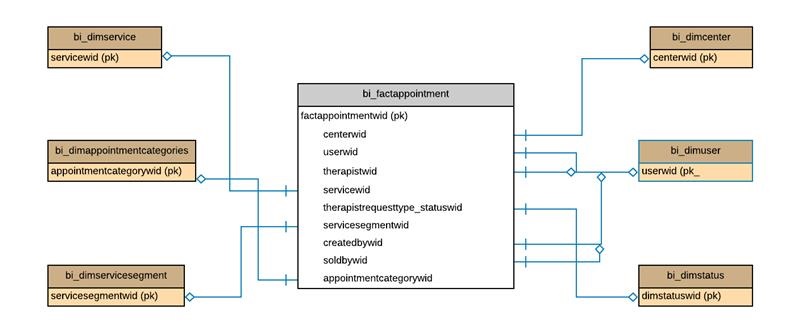

appointment_fact_consolidated	Appointments	bi_factappointment

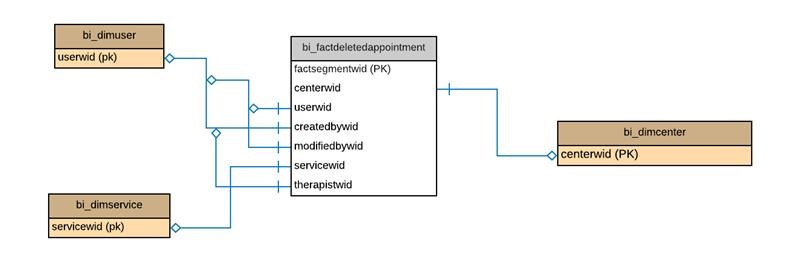

deleted_appointments_fact_consolidated	Deleted Appointments	bi_factdeletedappointment

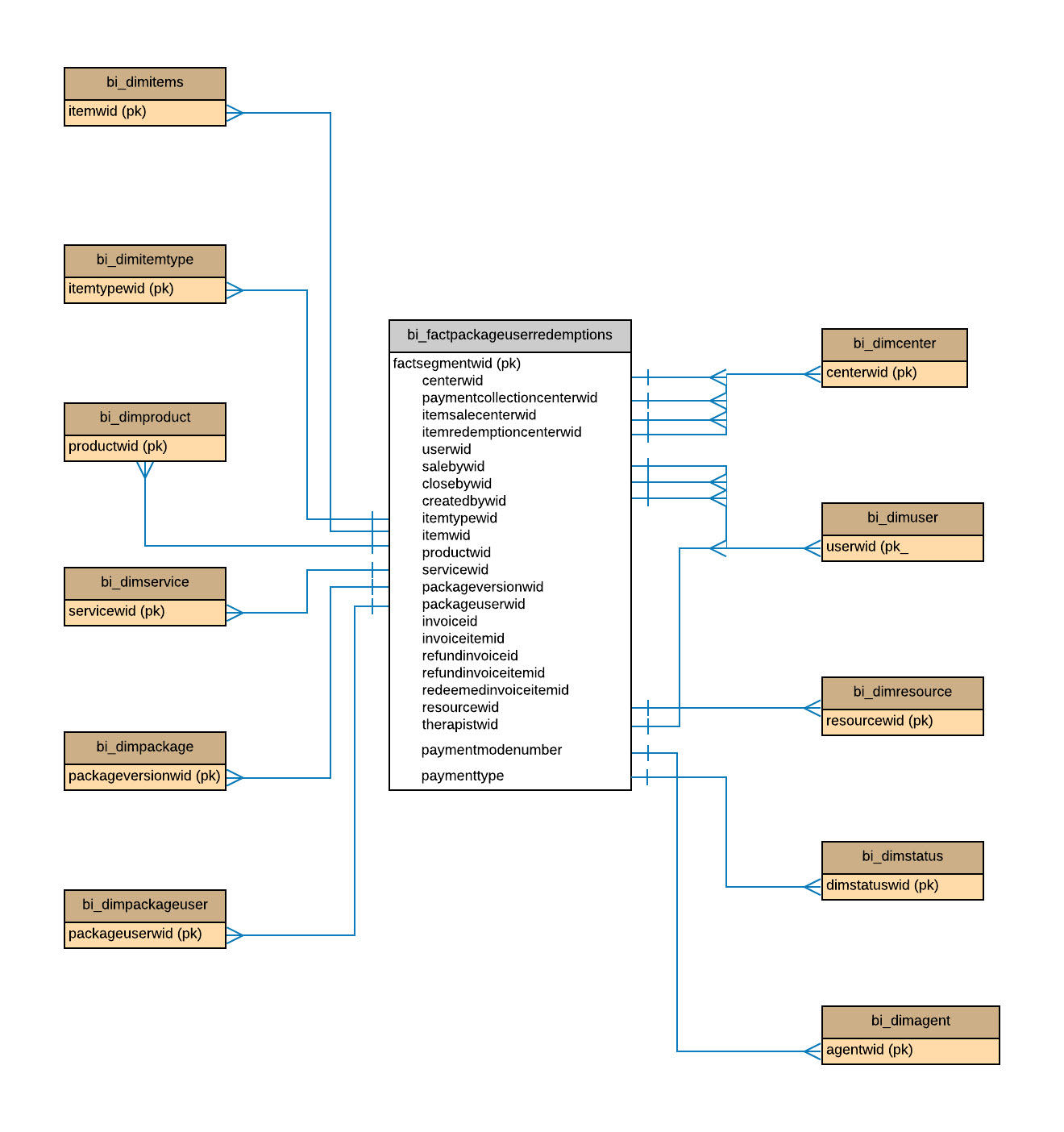

package_user_fact_consolidated	Packages	bi_factpackageuserredemptions

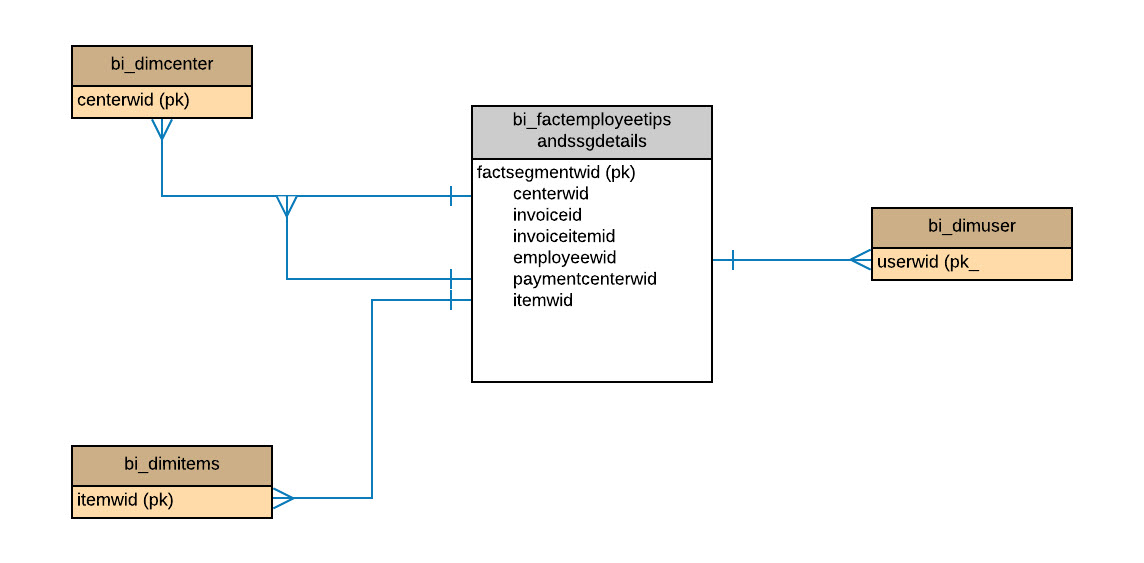

employee_tips_ssg_consolidated	Employee Tips SSG	bi_factemployeetipsandssgdetails

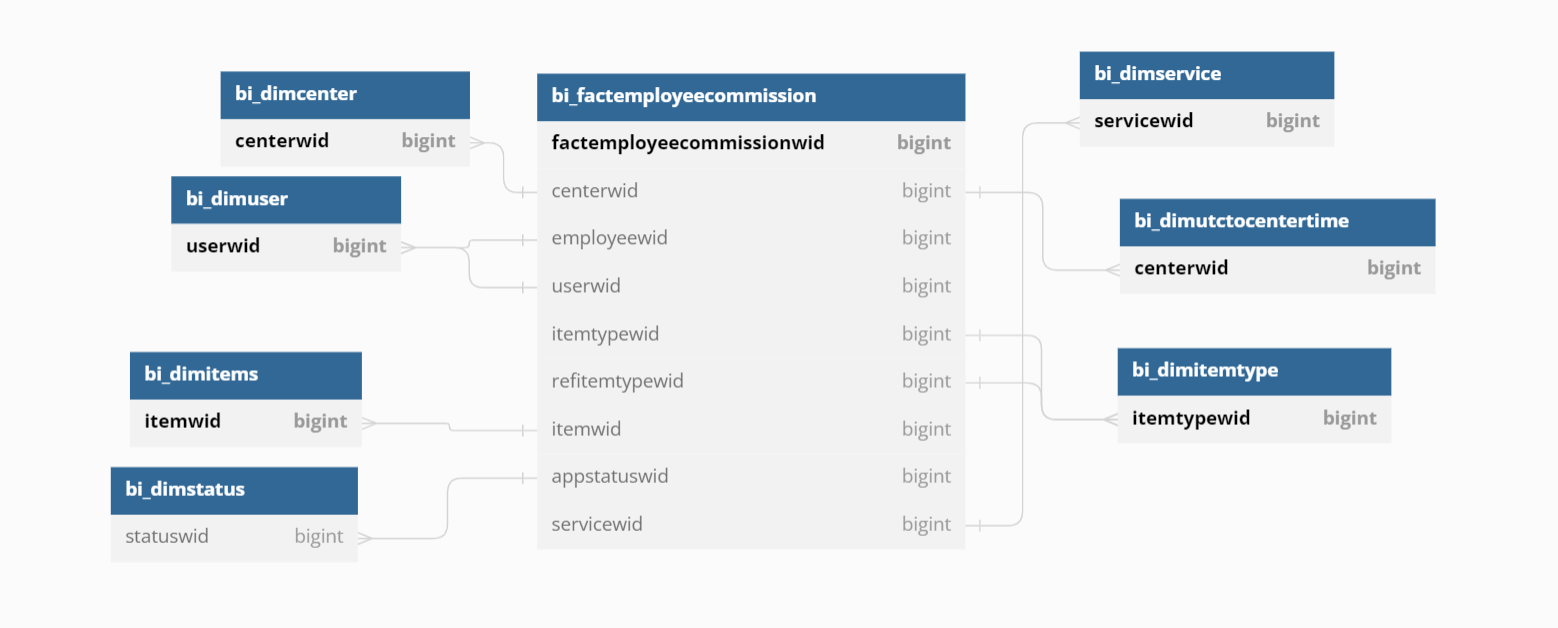

empcommission_fact_consolidated	Employee Commission	bi_factemployeecommission

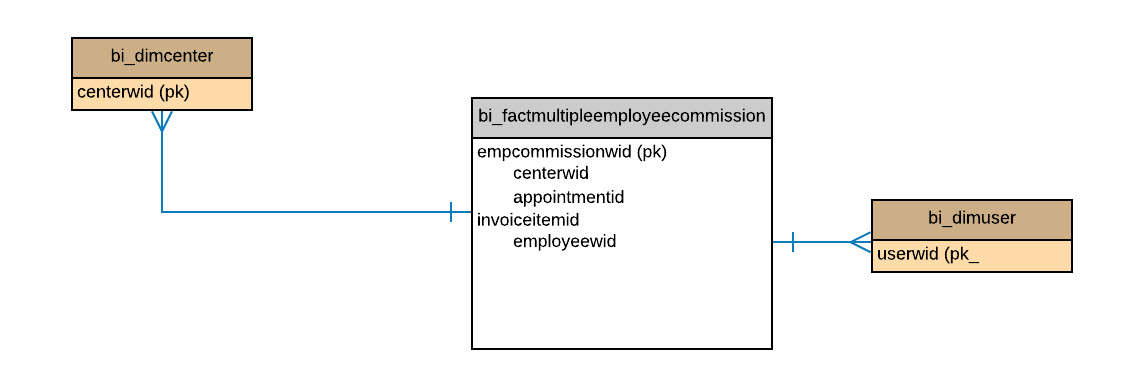

MultipleEmpComissions_Consolidated	MultipleEmpComissions_Consolidated	bi_factmultipleemployeecommission

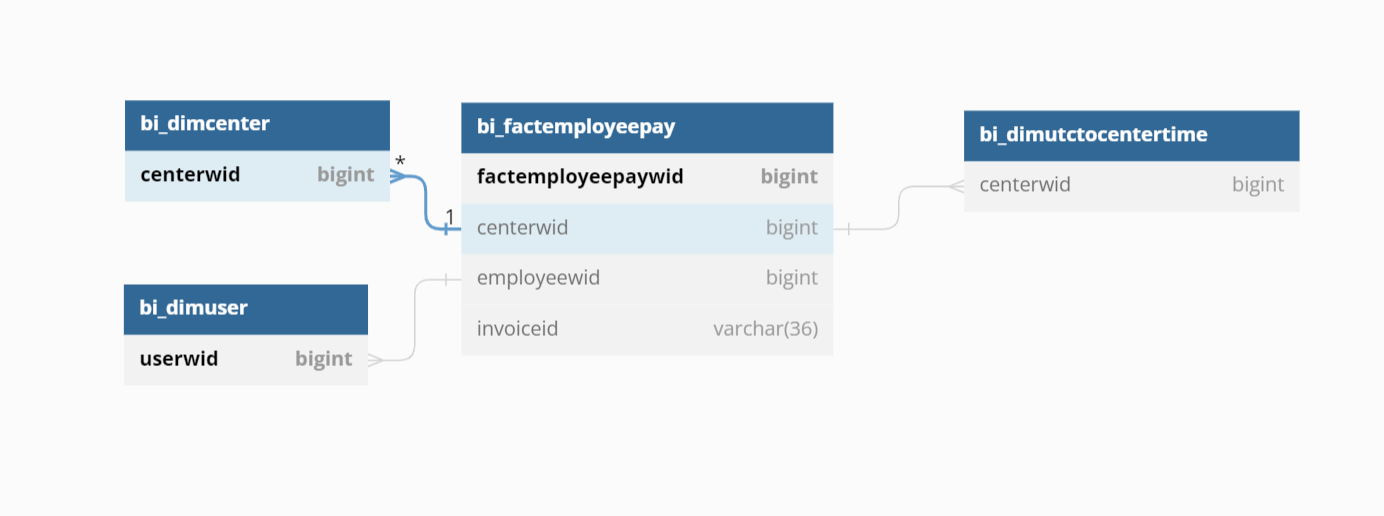

emphourlypay_fact_consolidated	Employee Hourly Pay	bi_factemployeepay

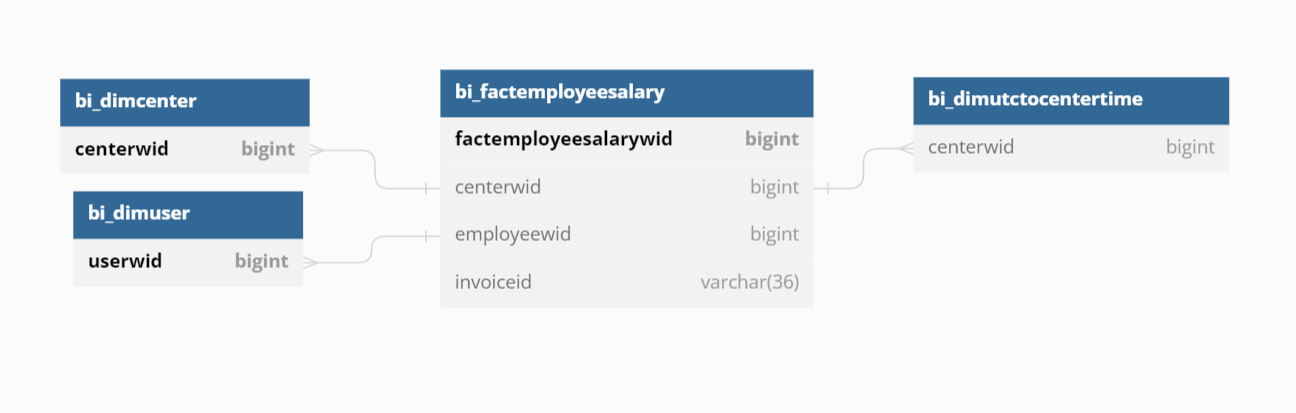

empsalary_fact_consolidated	Employee Salary	bi_factemployeesalary

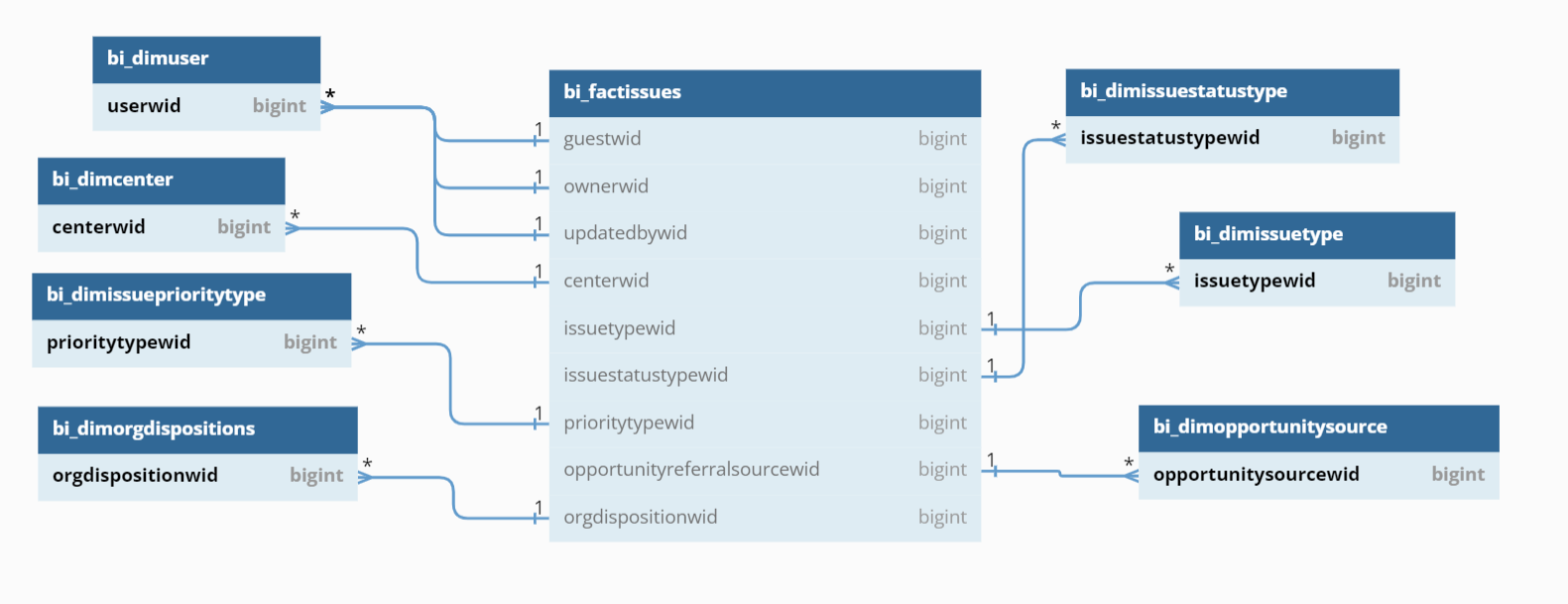

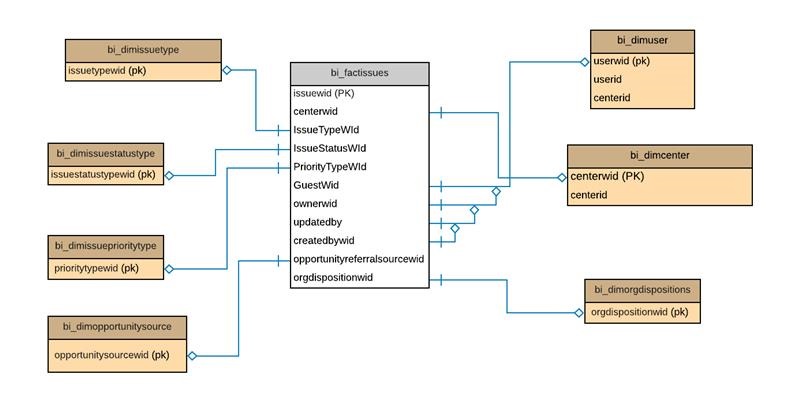

issues_fact_consolidated	Issues	bi_factIssues

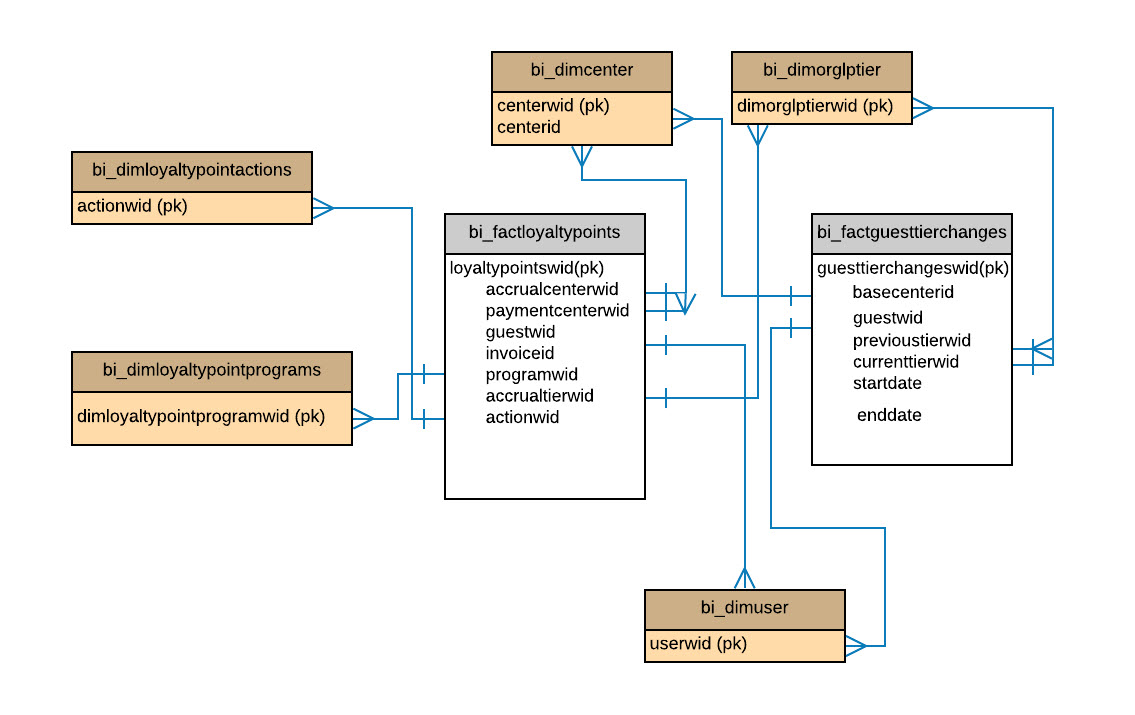

loyaltypoints_fact_consolidated	Loyaltypoints	bi_factloyaltypoints, bi_factguesttierchanges

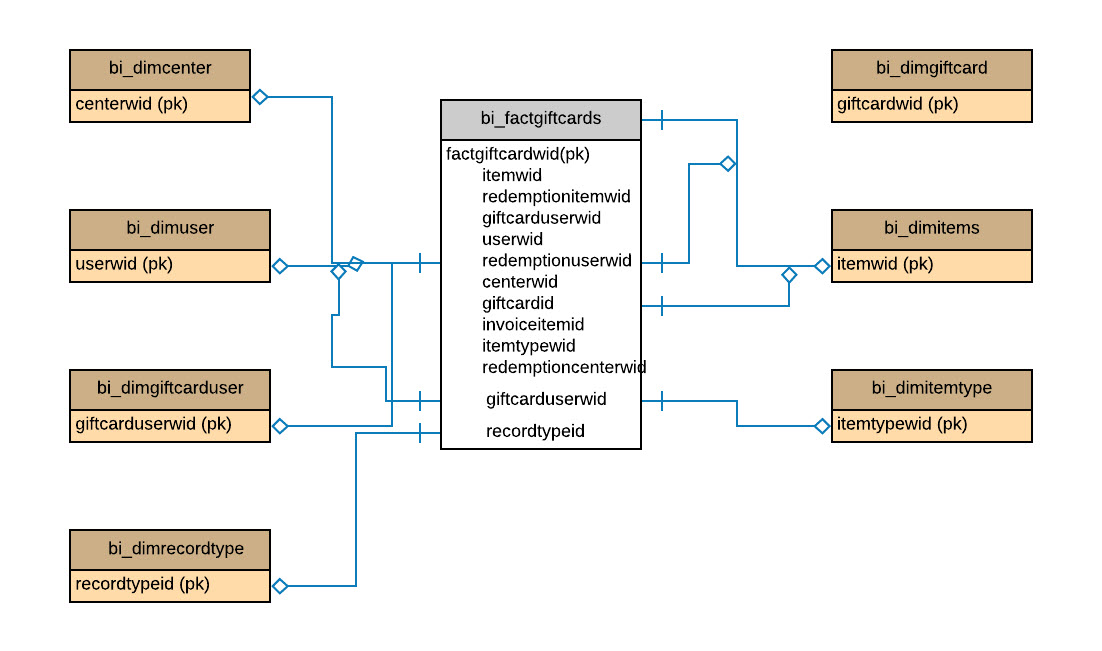

giftcards_fact_consolidated	GiftCards	bi_factgiftcards
opportunities_fact_consolidated	Opportunities	bi_factissues

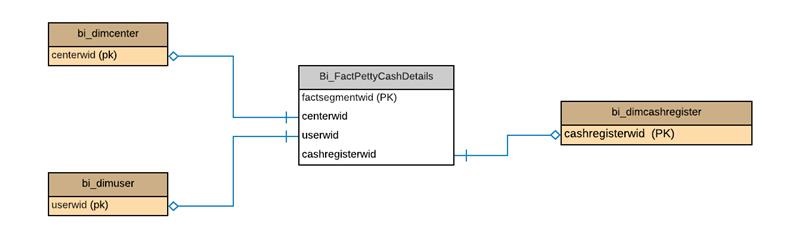

pettycash_fact_consolidated	PettyCash	bi_factpettycashdetails

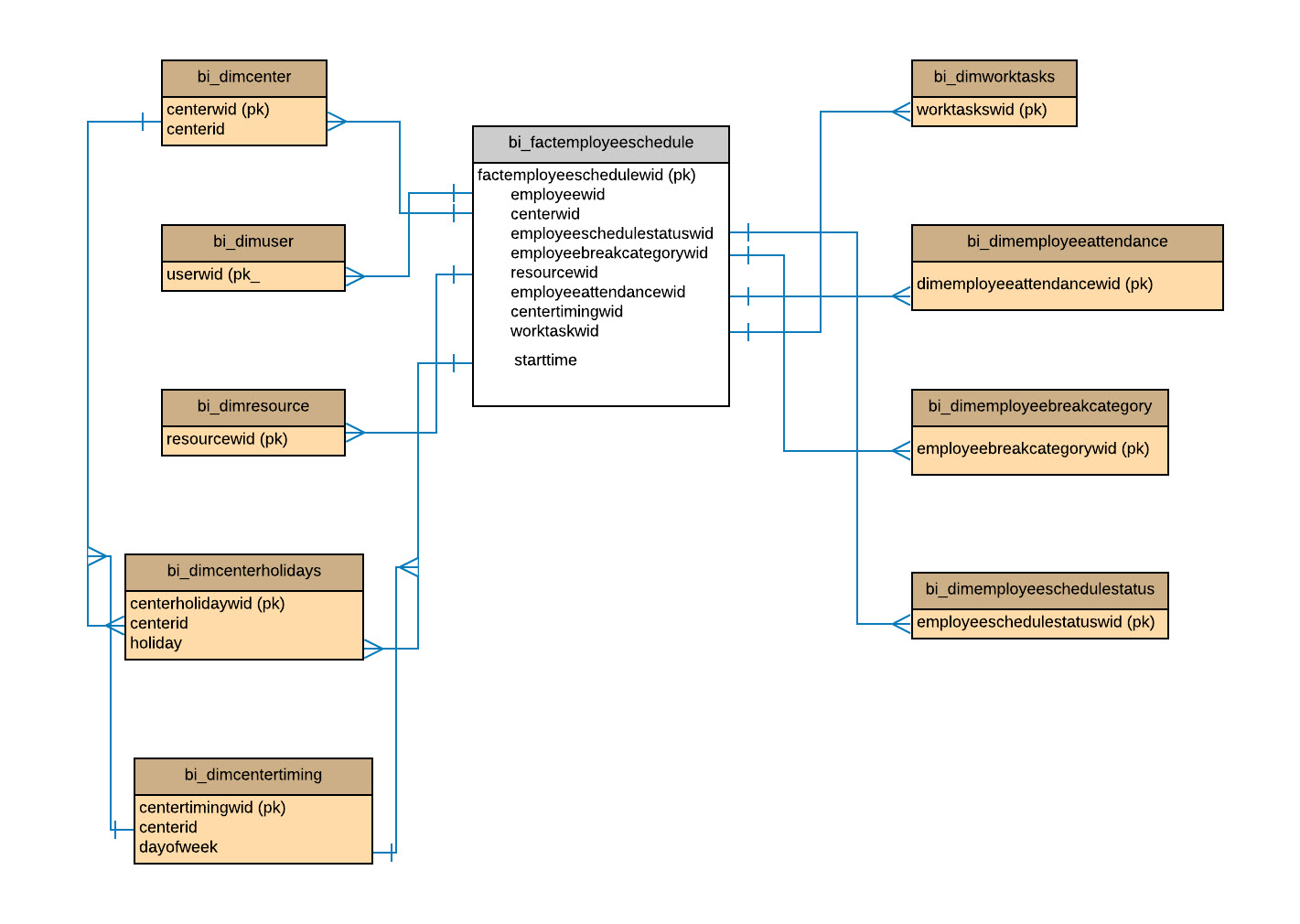

schedule_fact_consolidated	Employee Schedules	bi_factemployeeschedule

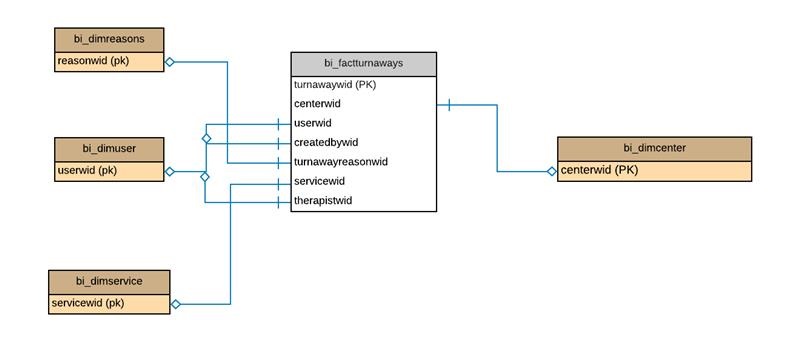

turnaway_fact_consolidated	Turnaways	bi_factturnaways

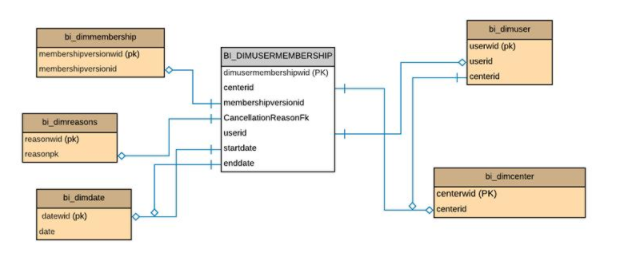

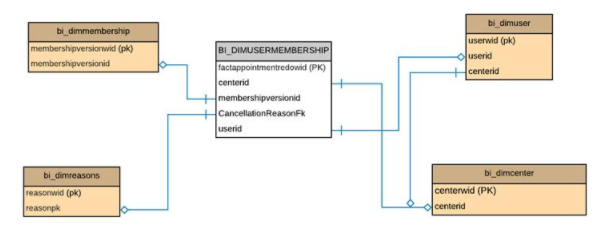

membership_fact_consolidated	Memberships	bi_dimusermembership
membership_fact_consolidated_date	Memberships Datewise	bi_dimusermembership

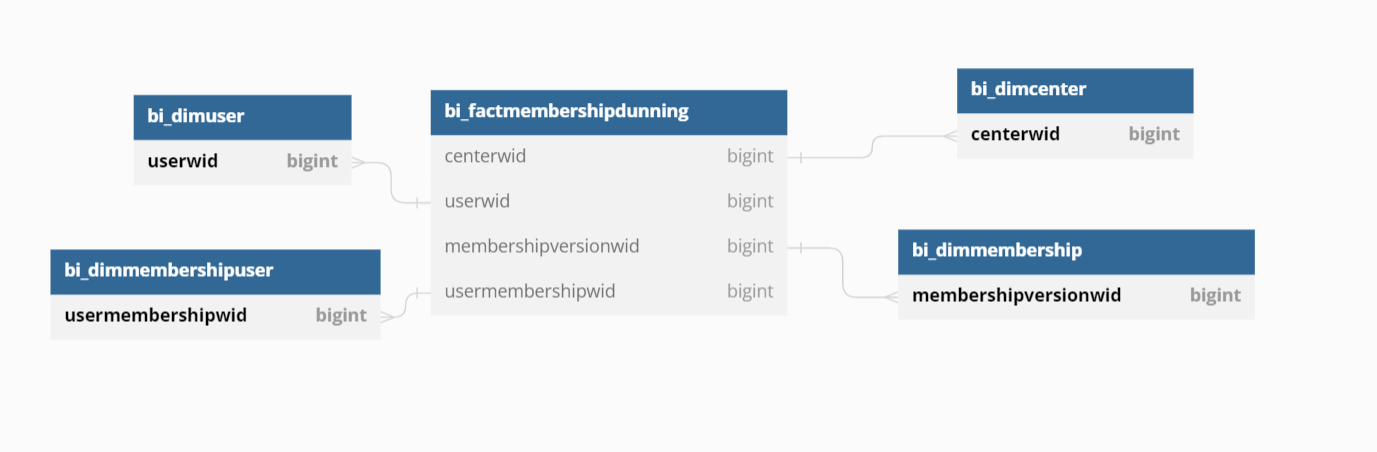

membership_dunning_consolidated	Membership dunning

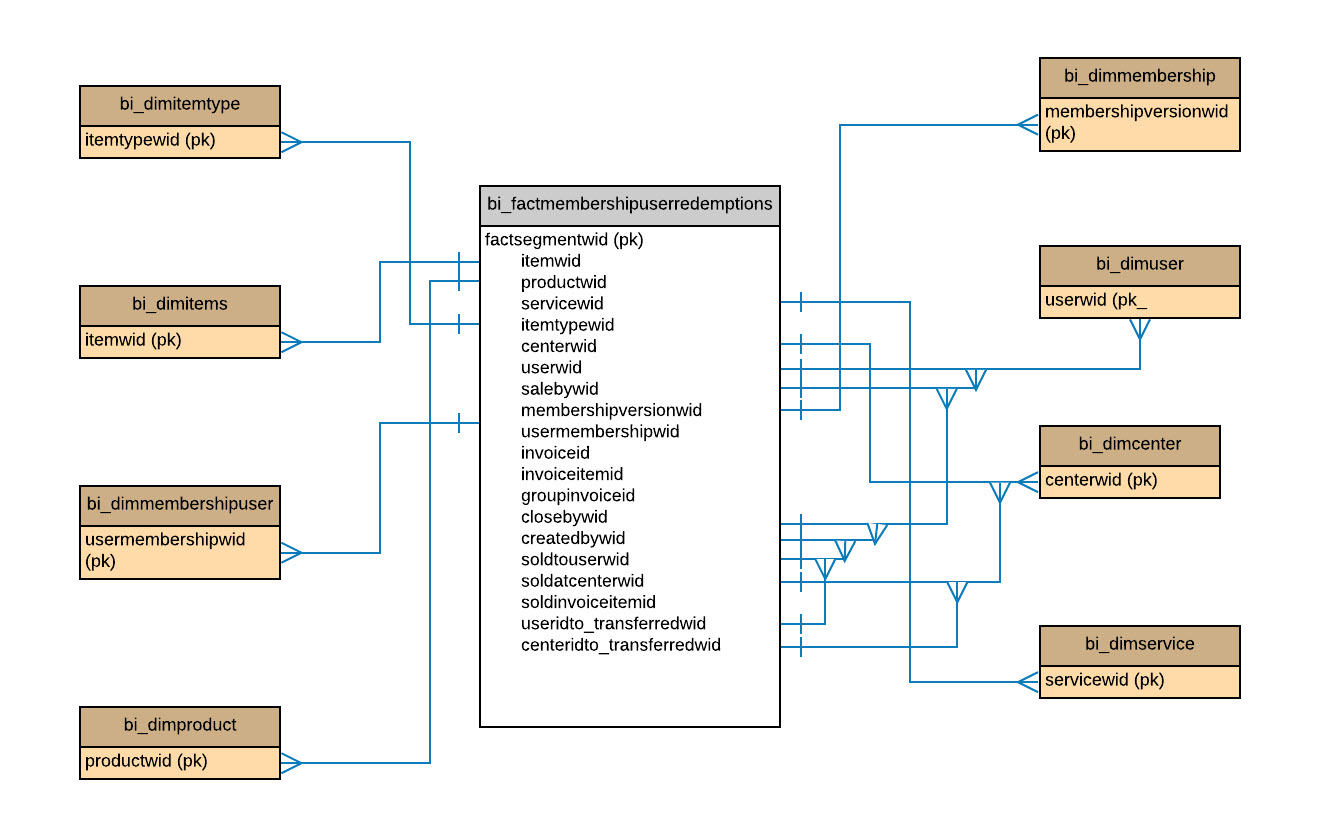

Membership_User_Fact_Consolidated	Membership Redemptions	Bi_FactMembershipUserRedemptions

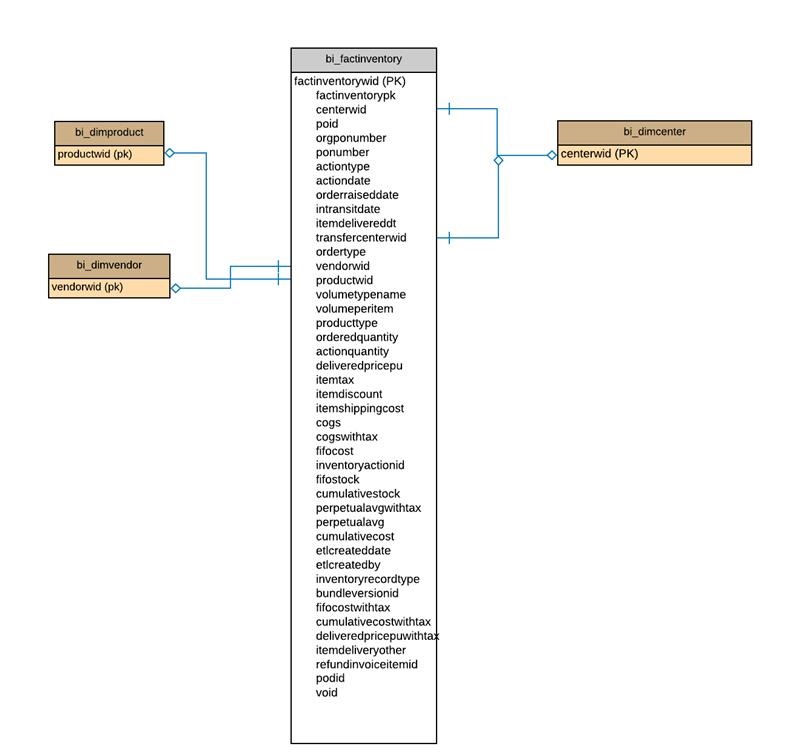

inventory_fact_consolidated	Inventory	bi_factinventory

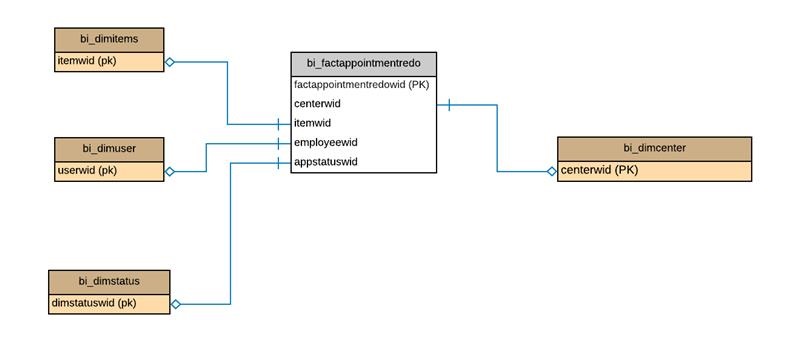

appointmentredo_fact_consolidated	Redo Appointments	bi_factappointmentredo
appointmentsegment_fact_consolidated	Appointment_Segment	bi_factappointment

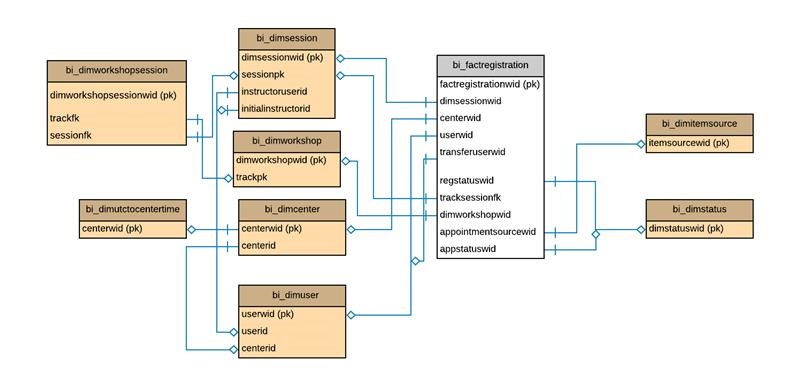

registration_fact_consolidated	Registration	bi_factregistration

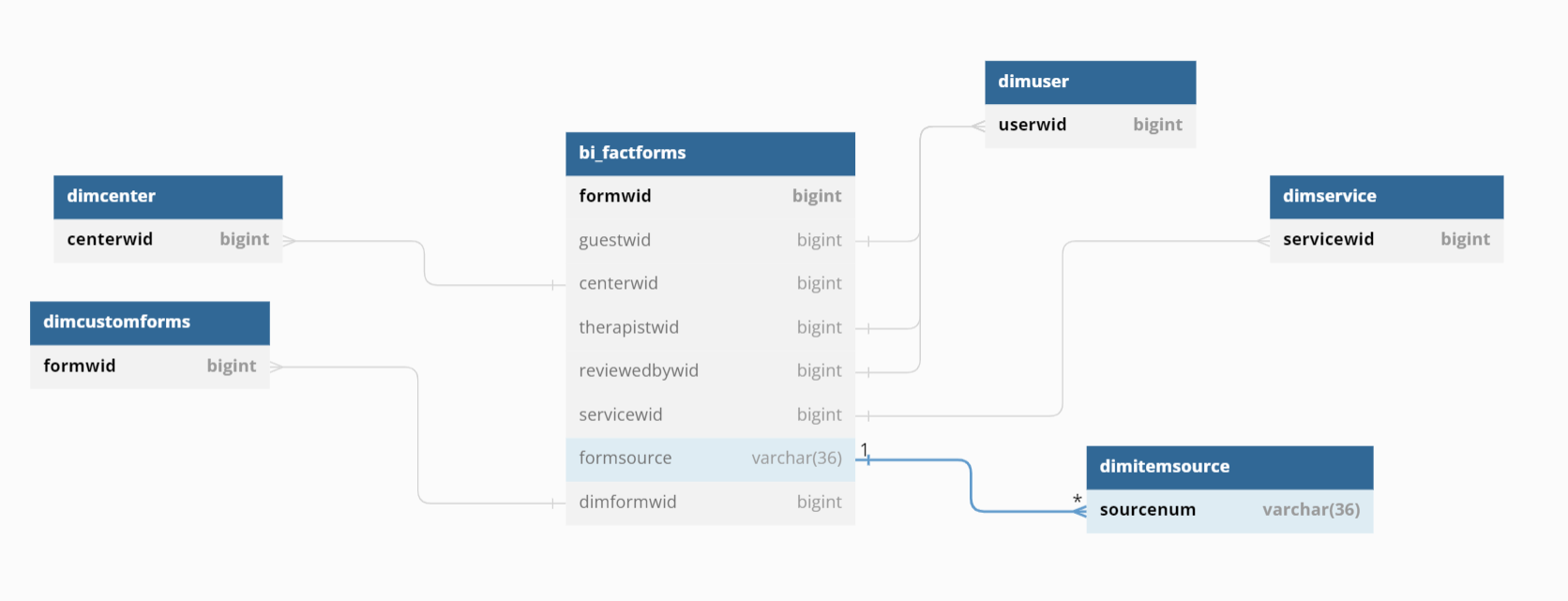

forms_fact_consolidated	Forms	bi_factforms

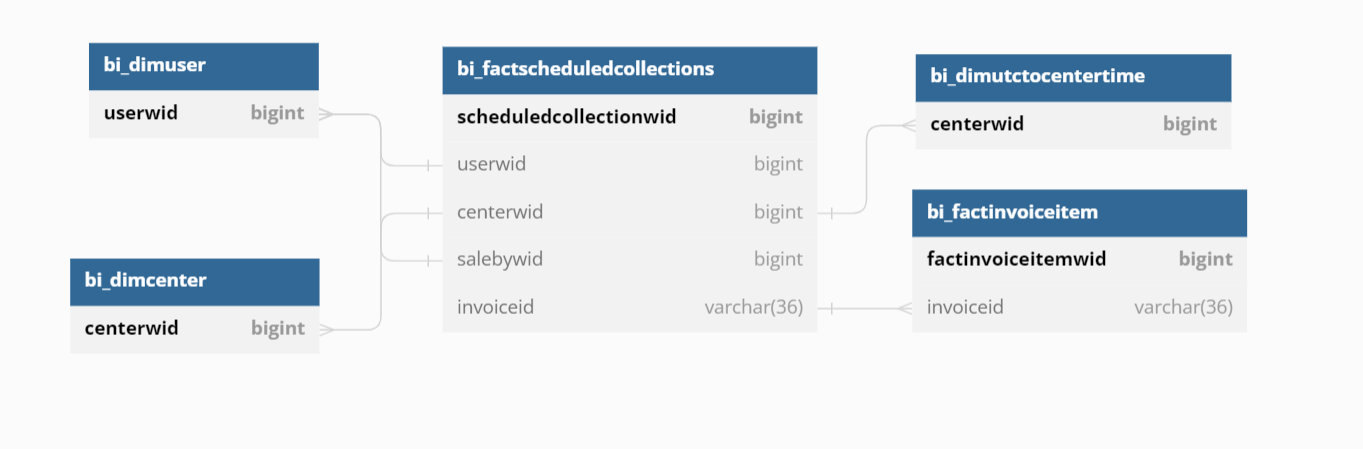

scheduled_collections_consolidated	Scheduled collections	bi_factscheduledcollections
donations_fact_consolidated	Donations	bi_factinvoicedonations

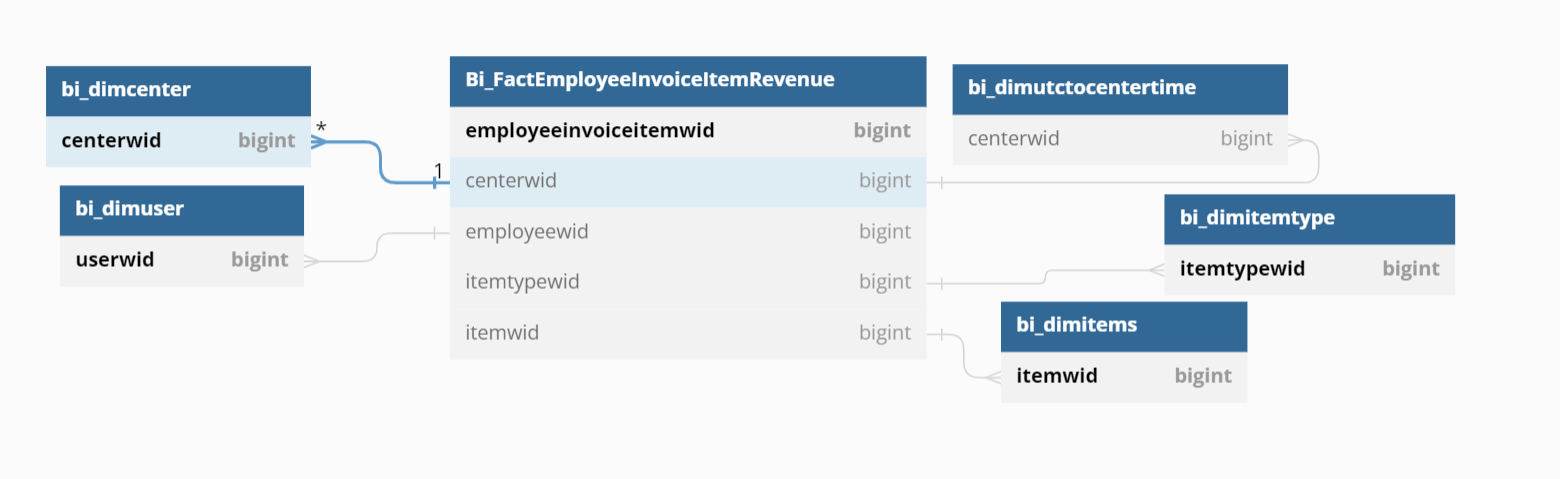

employeeinvoiceitemrevenue_fact_consolidated	Employee Revenue	bi_factemployeeinvoiceitemrevenue

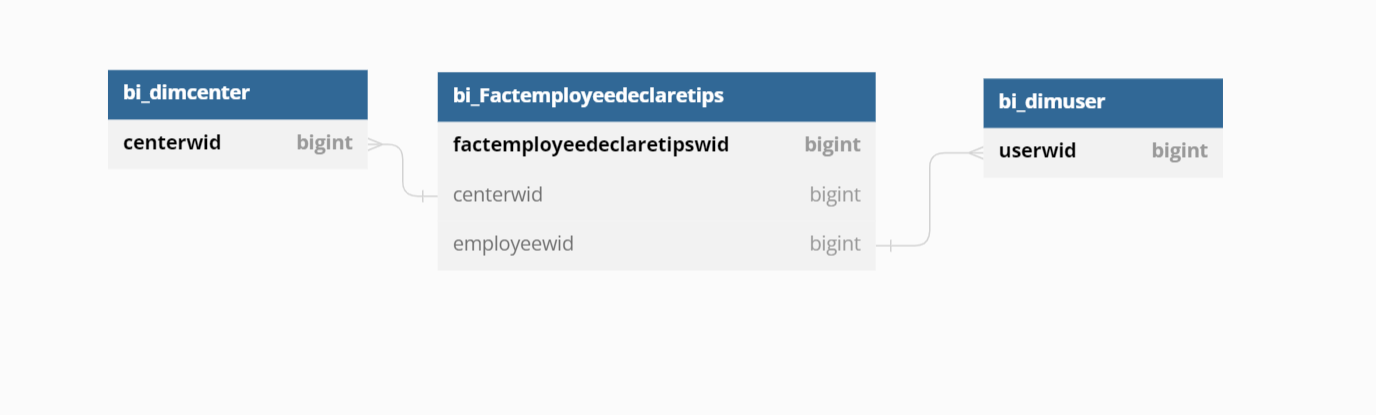

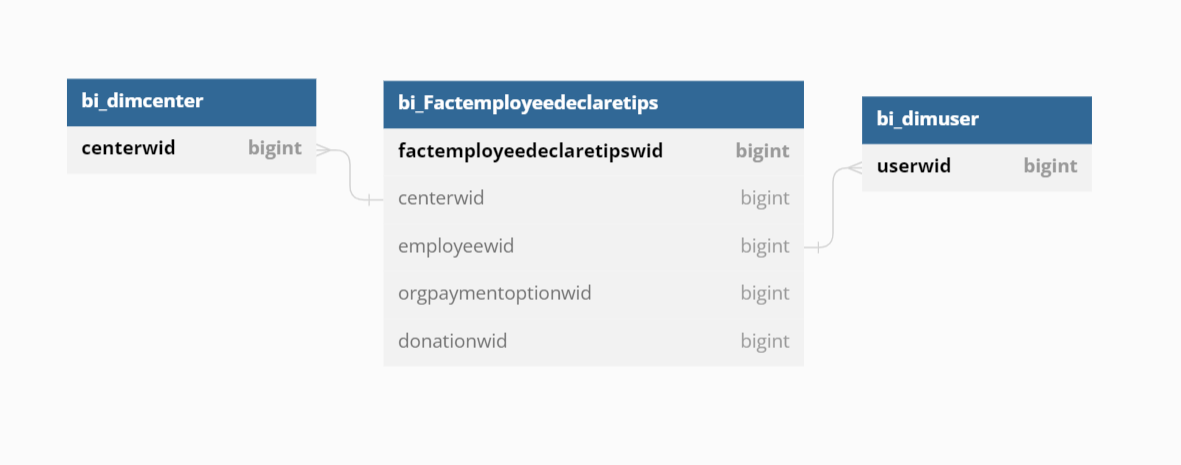

empdeclaretips_fact_consolidated	Employee Declared Tips	bi_factemployeedeclaretips
